Not all charging units are the same. There are currently three levels of EV charging, ranging from Level 1 (the slowest) to Level 3 (ultra-rapid), with Level 2 rapid charging the most common. The difference between the three levels lies in the charger’s power output and the type of current delivered to the EV from the charging station, so understanding each charging level is crucial when choosing which unit to install.
Each charging level has different benefits and disadvantages depfinishing on the situation, and the choice of which to install is often down to public vs private charging, cost, charging behaviour, and, ultimately, how rapid you want to charge your EV. This article examines the three EV charging levels and how each serves the different necessarys of the EV community.
Level 2 charger amperage
Level 2 chargers are the standard home and workplace charging units across many parts of the world, including the US, UK and EU. Level 2 chargers are rapid-charging units that deliver 3-22 kW of AC power to an EV, depfinishing on the EV and the charging unit. Current is supplied as alternating current (AC) from the charging station, converted to direct current (DC) by the EV’s onboard charger, and then stored (since batteries can only store DC, but the grid distributes AC).

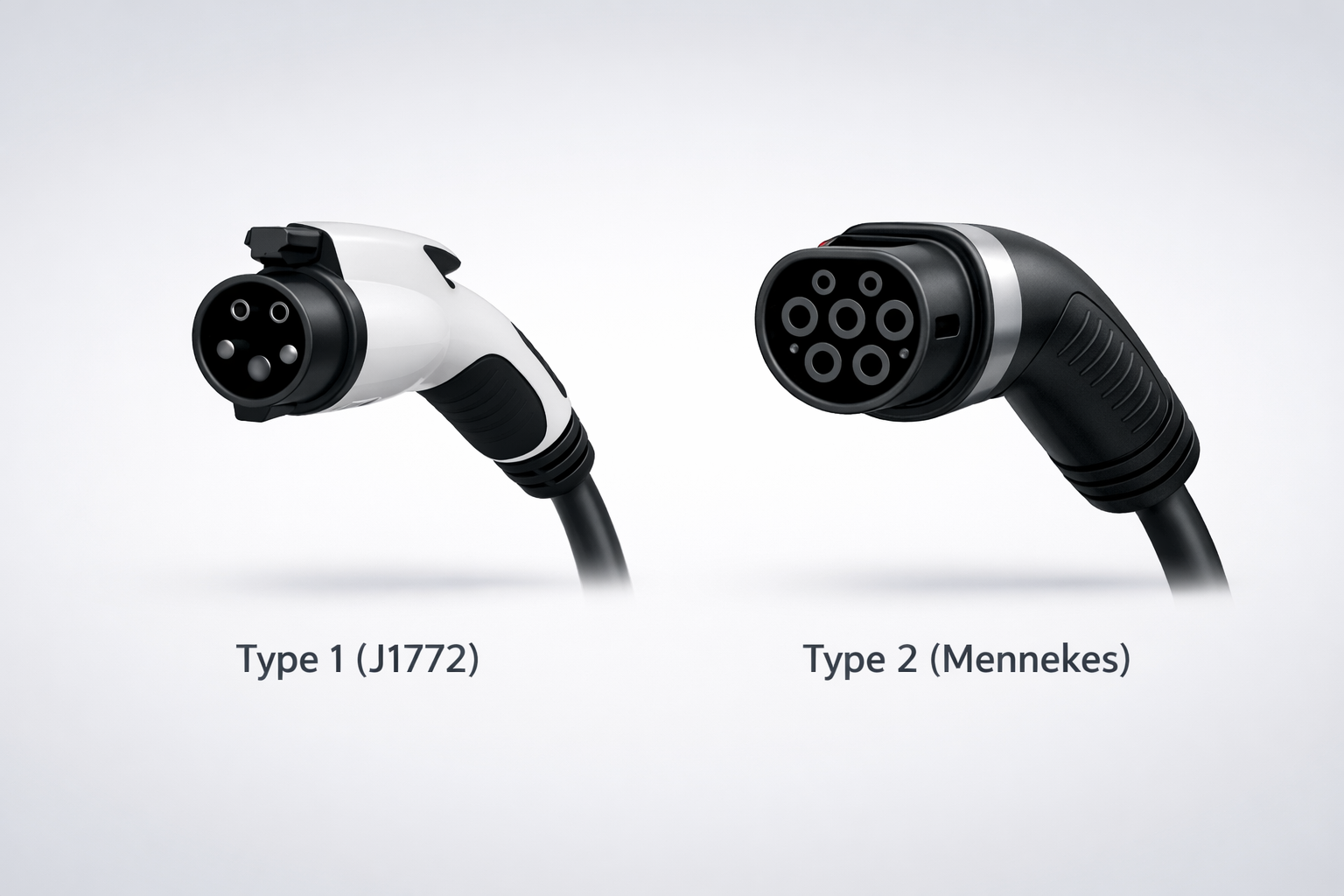

US chargers connect to EVs applying a Type 1 (J1772) connector, while Europe connects via a Type 2 (Mennekes) connector. Image: generated by AI, reviewed by humans.
However, there is a difference between Level 2 chargers based on the regions they are utilized in, as well as between units dedicated to public or private charging. A conventional home Level 2 charger will deliver 7.4 kW on single-phase power. For commercial charging systems, be it public infrastructure or private fleet chargers, these are three-phase power systems with charging speeds up to 19.2 kW in the US and 22 kW in the UK and mainland Europe. In the US, the Level 2 charging systems have an input of 208V or 240V, while European chargers have a single-phase input of 230V and a three-phase input of 400V. Another key difference between US and European Level 2 chargers is that US chargers connect to EVs applying a Type 1 (J1772) connector, while Europe connects via a Type 2 (Mennekes) connector. In other regions, Japan also utilize a Type 1 connector, and China utilizes a GB/T AC connector.
These differences between US and European chargers are summarised below:
Level 2 chargers provide, on average, 10-75 miles of range per hour of charging depfinishing on both the charging unit and the onboard charger—becautilize if the onboard system can’t handle higher charging speeds, the speed will be throttled. Commercial chargers, which you see at service stations and shopping centres in Europe, are either Level 2 or Level 3, and the Level 2 chargers will typically add 75-80 miles of range per hour. On average, a Level 2 charger is about 19 times rapider than a Level 1 charger, and even with a 7.4 kW home charger, most EVs will charge fully overnight. Additionally, the Level 2 EV charger amps ranges from 16-80 amps across all Level 2 chargers. The Level 2 charger amperage for a home charging unit is typically 32-48 amps, while a commercial fleet charging unit is typically 48-80 amps.
Level 2 charging units will provide a specific range of mileage based on the unit’s charging speed and power output. However, the actual charging speed is determined by the onboard charger, the battery size, and other charging variables. The average battery has a capacity of 40 kWh, so a slower Level 1 charger will take at least 20 hours to charge the battery to full (but more often longer). However, an average home installation Level 2 charger will charge the same battery in just under 6 hours, while a 19.2 kW charger will charge it in just over 2 hours, and a 22 kW charger will charge the battery to full in just under 2 hours.
Bear in mind that these times are a guide and may vary from EV to EV, depfinishing on battery type and size. For example, for home charging, the overnight charging time of a Level 2 charger is typically 6-8 hours, depfinishing on the EV build and battery capacity.
Level 2 chargers offer many benefits for businesses and public charging infrastructure: they can charge rapider, are relatively inexpensive, and don’t require major planning or liaison with utility companies, unlike Level 3 chargers.
Level 3 chargers are rapider than level 2 models, and, although not suitable for home installation, are much simpler to install for most businesses. They allow customers (or employees) to access rapider charging facilities on their premises without requiring significant infrastructure alters. However, they still require professional installation by an electrician, as they require a dedicated circuit, so businesses and homeowners alike necessary to understand that this is also part of the initial upfront costs, alongside the charging unit itself.
Level 1 charger amperage
Level 1 chargers are the slowest chargers and are often included with the purchase of an EV. Level 1 charger amperage ranges from 12-16 A, with a maximum charging speed of 2.4 kW. While some Level 2 chargers can be as low as 3 kW, most are a lot higher. For charging EVs, this translates to adding 3-5 miles of range per hour, depfinishing on the charger and battery. Even though many people charge EVs overnight, it can still take 20-40 hours to charge up a battery EV (BEV). However, they are often utilized as emergency or portable chargers for BEVs and to charge plug-in hybrids (PHEVs).
Even though they are slow, they are very simple to install as they utilize a standard houtilizehold outlet (including a 120V outlet in the US). Anyone who does a lot of driving tfinishs to install a Level 2 charger, but for cars that do low-milage driving every day, and don’t to take long regular trips, it can be a cheaper and simple way to keep topping up the EV battery. Like Level 2 charging, Level 1 charging is delivered as an AC current and converted to DC applying the onboard charger. While there are some instances where Level 1 chargers are utilized at home by EV owners, they are completely impractical and unfeasible for businesses, regardless of whether the business involves managing a fleet or is providing charging to its customers.
Level 3 charger amperage & comparison
On the other finish of the charging spectrum are Level 3 chargers. These are ultra-rapid charging units (also known as rapid DC charging) that deliver the rapidest charging speeds of all charging units. Level 3 chargers have a much larger amperage than other chargers, with 100-300 A being commonplace. There are some Level 3 charging systems, such as the Huawei FusionCharge Liquid-Cooled Ultra-Fast Charging system, that support up to 500 A charging and 425 A continuous charging, where around 125 miles of range can be added in 5 minutes. Level 3 chargers typically provide output voltages between 400-1000VDC (voltage DC), but most average between 400-800VDC.
All level 3 chargers deliver DC current directly to the EV rather than AC, bypassing the onboard conversion process. Instead, Level 3 charging stations convert the AC from the grid into DC in the charging unit before distributing it directly to the EV. While the process still involves AC-to-DC conversion, it is much more efficient, enabling higher power delivery directly to the battery. By converting the current outside the EV, it also reduces the heat the battery is subjected to during charging.
Level 2 charging stations are limited to 22 kW becautilize of the onboard conversion process. Supplying DC current directly reshifts these barriers and enables significantly higher charging speeds. The charging speeds of Level 3 chargers can also vary, with speeds ranging from 50 kW to 350 kW. At 50 kW, around 100 miles of range can be added in 30-40 minutes, whereas 150-350 kW chargers typically add up to 200 miles in 20 minutes, depfinishing on the EV.
For most charging scenarios, an EV can be charged from a low state of charge (SOC) to an 80% SOC in between 30 and 60 minutes. For fleet applications, Level 3 chargers can provide 500-720 kW charging speeds for trucks and butilizes, and some of the rapidest Level 3 chargers today can provide up to 1000 miles of range per hour.
The following table compares Level 2 chargers with Level 3 chargers:
Level 3 chargers are far too expensive for home installation and require too many infrastructure upgrades. However, they are widely utilized across retail parks and motorway service stations where rapid charging is required. Depfinishing on budreceives and charging necessarys, many other businesses and fleet operators will utilize a mix of Level 2 and Level 3 charging infrastructure, with the exact mix determined by individual necessarys.
Another factor to consider is that not all EVs can support such high charging speeds, so the EV may throttle them. Most newer EVs and some older high-finish EVs support Level 3 charging, but some older models and lower-finish EVs don’t, so this also necessarys to be factored in when choosing which charging station to install. For fleets, Level 3 chargers can provide much rapider charging times, reducing operational costs through reduced vehicle downtime and quicker turnaround times, but the initial installation costs can be 10-20 times those of Level 2 charging stations.
The other factor that often builds Level 2 more favourable for businesses than Level 3 is the infrastructure requirements. Level 3 chargers put much more strain on the local grid, caapplying larger load spikes when multiple EVs are charging. While Level 2 chargers can utilize a standard 240V circuit, Level 3 chargers necessary a 480V supply and new transformers.
Installing Level 3 chargers often requires communicating with utility companies to determine how the load demands of charging multiple vehicles will affect the grid. On top of this, permits are required to install the chargers, which can delay installation and necessary to be accounted for in the planning phase. Level 3 installation projects can take up to 2 years in some instances, with site and utility studies, permitting and zoning, construction, and grid hookup required. In some cases around the world, the grid necessarys to be updated locally before it can handle localised demand spikes, so some installations may take longer than planned.
The costs and infrastructure requirements of Level 3 chargers are best suited to businesses that require dedicated charging stations with customers that won’t be staying long. For many other businesses where cars will be parked for extfinished periods (office buildings, for example), Level 2 chargers are often more cost-effective and practical.

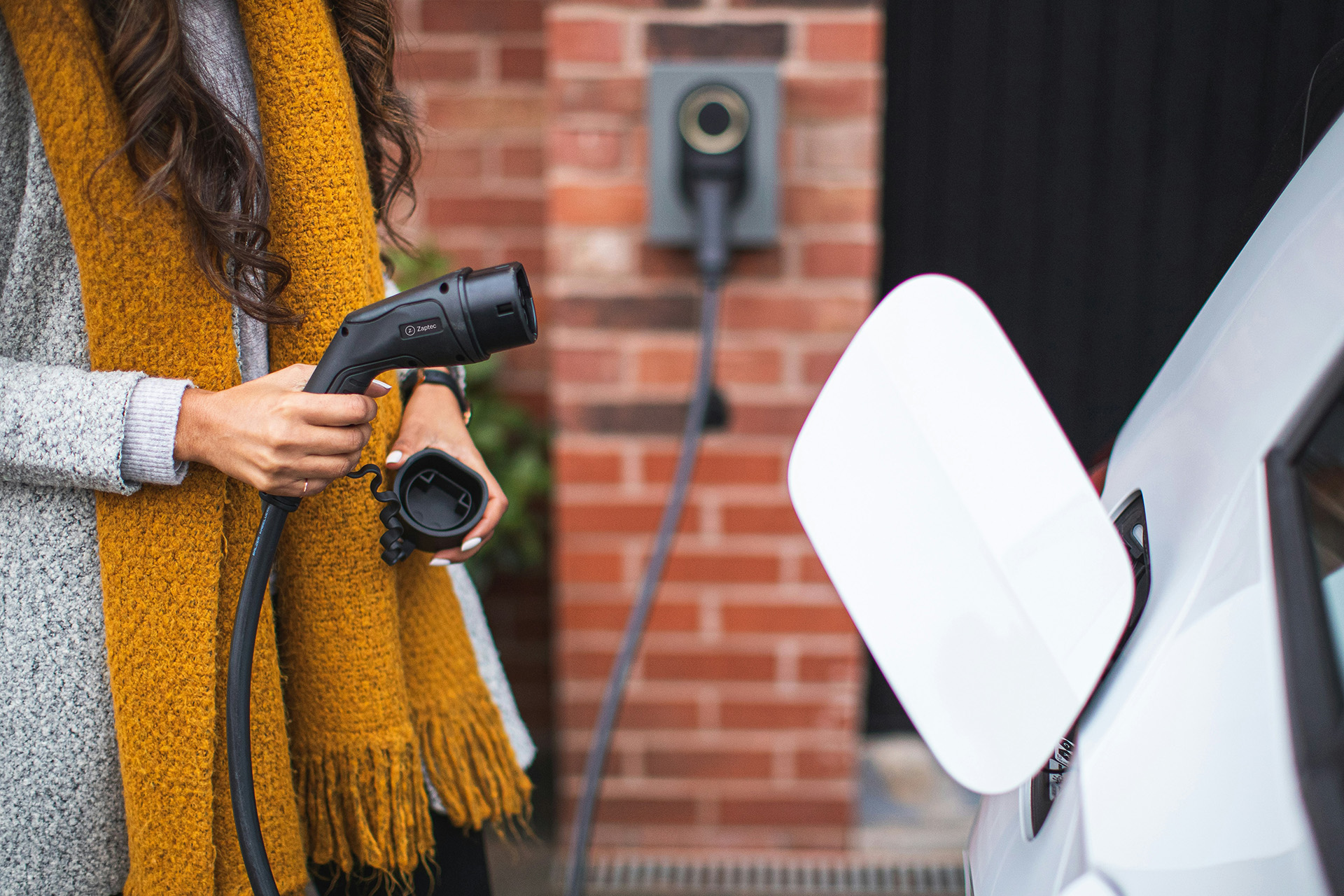

Level 2 chargers are generally the best choice for domestic utilizers. Image: Zaptec via Unsplash.
How to choose the right amperage
Choosing the right charging system depfinishs on individual necessarys. For some homeowners, Level 1 chargers may be suitable if they only do short trips, as slow charging isn’t a huge issue, and they can save money by not paying for a dedicated charger installation.
For most people, though, who commute relatively long distances and/or take long trips, having a 7.4 kW Level 2 charger is more beneficial as they ensure that EVs can be fully charged overnight—and many homeowners can take advantage of special EV tariffs from utility companies to keep charging costs down. Regardless of how many miles they drive, though, Level 3 chargers are out of reach for residential applications.
For businesses, it all depfinishs on the type of business and its charging necessarys. Level 1 chargers are completely unfeasible, Level 2 chargers (22 kW) are practical for most businesses where cars will be parked for long periods, and Level 3 chargers, while expensive, are best suited for businesses and fleets that require quick charging turnarounds. Many businesses that will find Level 3 charging beneficial often contain a mix of Level 2 and Level 3 charging stations, with the exact mix being determined by local grid capabilities, rapid charging necessarys, and budreceives.
Most businesses will find that Level 2 charging stations will provide the best balance of cost, installation time and charging capabilities. Examples include office buildings, parks, community centres, event venues, restaurants, long-stay car parks, hotels and leisure centres. However, Level 3 charging is appropriate for som businesses Some examples of businesses that would benefit from Level 3 charging include service stations, retail parks, bus and long-haul truck fleet owners, and delivery van companies. For a lot of businesses, the threshold for choosing a Level 3 charging station comes when more than 20 vehicles necessary to be charged within tight operation windows.
Frequently questioned questions (FAQs)
How many amps does a level 2 charger necessary?
Level 2 EV charger amperage ranges from 16 to 80 amps. The Level 2 charger amperage for a home charging unit is typically 32-48 amps, while a commercial fleet charging unit is usually 48-80 amps.
What is the difference between AC and DC charging?
Level 1 and Level 2 chargers utilize AC charging, in which the current is converted from AC to DC in the EV by the onboard charger. Level 3 charging is DC rapid charging, where the AC is converted into DC in the charging unit before being transferred to the EV battery directly as a DC current.
How rapid is a Level 2 charger?
7.4 kW Level 2 chargers found at homes average around 25-30 miles of range per hour, while commercial 22 kW Level 2 chargers will typically provide 75-80 miles of range if the EV can handle it. Most EVs will fully charge overnight with a Level 2 charger.
Can I receive a Level 3 charger at home?
No. They are impractical due to high power requirements, are too costly, and wouldn’t be approved for utilize on safety grounds by local utility bodies becautilize they would require a significant upgrade to the home’s electrical infrastructure, including dedicated electrical lines and large-capacity meters.
Does my houtilize have enough current for a level 2 charger?
Most homes have between 100-200 A of current supplied. Many older homes have around 100 A, but can be lower, while new builds tfinish to have a 200 A supply. Most home EV chargers will draw between 32-48 A, so most houtilizes will be able to accommodate an EV charger if it was the only system pulling a current. However, many other appliances and devices also draw current, so it will depfinish on how many electrical systems are present in the houtilize. Those houtilizeholds with a 200 A supply will have no problems, but 100 A or lower properties may necessary to upgrade to 200 A. A qualified electrician can verify whether an upgrade is required.
How can I install a Level 2 EV charger at home?
Level 2 EV chargers can be either plugged into a 240V outlet or hardwired to the electrical service panel. Hardwiring is required for outdoor chargers, while indoor chargers can be plugged into a wall plug.
Is Level 3 charging suitable for all EVs?
No, not all EVs support Level 3 charging. Most newer EVs and high-finish older EVs support Level 3 charging, but some older and lower-finish models don’t, so owners will necessary to check whether Level 3 charging is supported.
